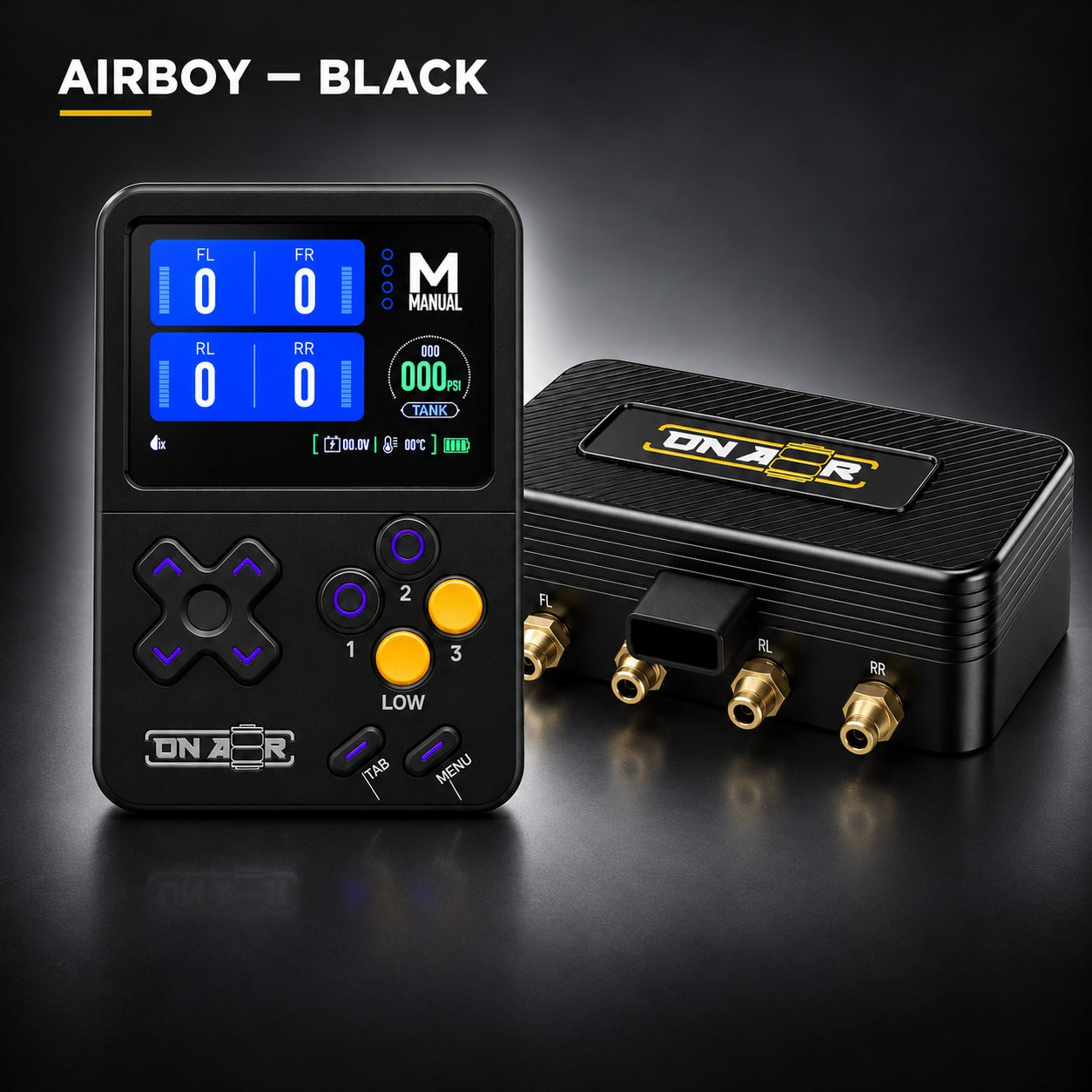

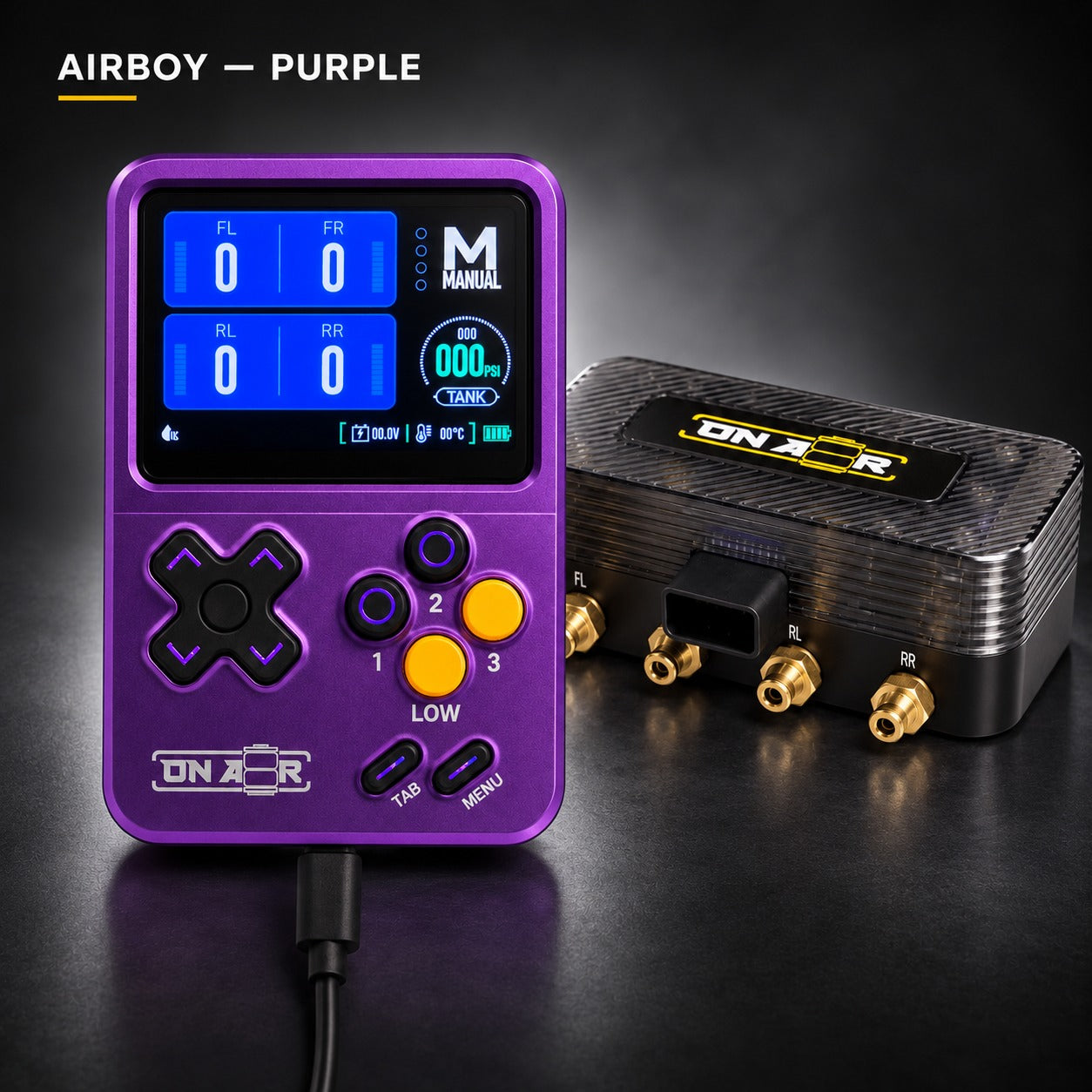

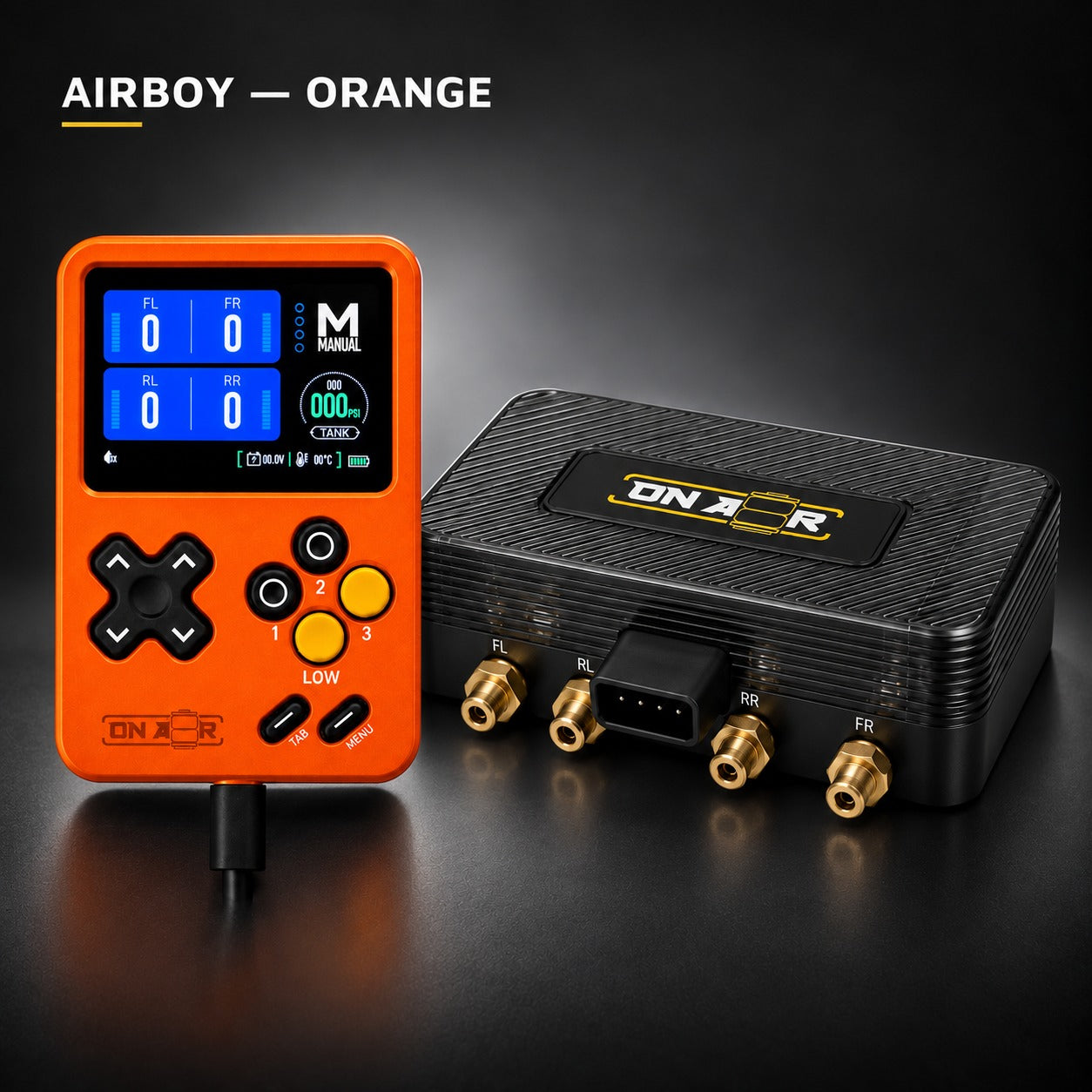

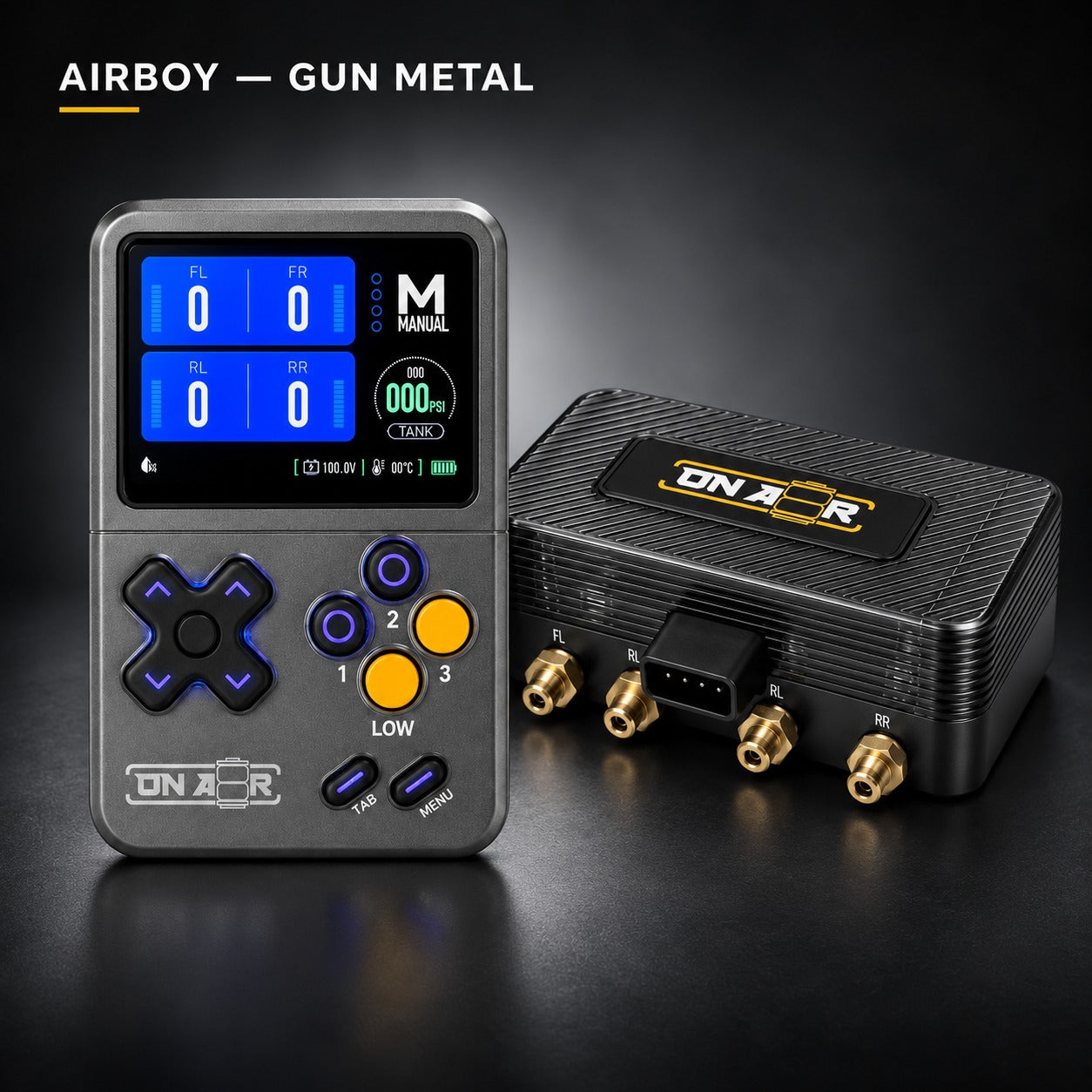

Black • Gun Metal • Purple • Orange. Wired USB-C controller.
![Image of *NEW* AirBoy Management System [Pre-Order Now] - Shop ONAIR](http://shoponair.ca/cdn/shop/files/new-airboy-management-system-pre-order-now-3110231.png?v=1781252291&width={width})
![Image of *NEW* AirBoy Management System [Pre-Order Now] - Shop ONAIR](http://shoponair.ca/cdn/shop/files/new-airboy-management-system-pre-order-now-7425917.png?v=1781252290&width={width})
![Image of *NEW* AirBoy Management System [Pre-Order Now] - Shop ONAIR](http://shoponair.ca/cdn/shop/files/new-airboy-management-system-pre-order-now-2947639.png?v=1781252290&width={width})
![Image of *NEW* AirBoy Management System [Pre-Order Now] - Shop ONAIR](http://shoponair.ca/cdn/shop/files/new-airboy-management-system-pre-order-now-9076416.png?v=1781252290&width={width})
Air Boy Management System
Need help choosing?
Air Boy Management System
$1,955.00
$2,205.00
Shipping calculated at checkout.
For a tactile handheld, detailed settings and the optional Clear + Wireless controller.
USB-C • CURRENT SOFTWARETank, compressor and vehicle-specific suspension are separate. Only Clear + Wireless includes the battery-powered wireless handheld.
How it controls · Compare systemsQuantity
Description
Tactile buttons, a distinctive handheld and ONAIR’s largest manifold block make AirBoy a different air ride experience. Three presets plus a dedicated LOW button keep the everyday controls easy to use.
Choose AirBoy for
For a tactile handheld, detailed settings and the optional Clear + Wireless controller.
Control and display
Adjust corners individually, in pairs or together. To save a new pressure preset, set the vehicle to your chosen position, then press and hold that preset button.

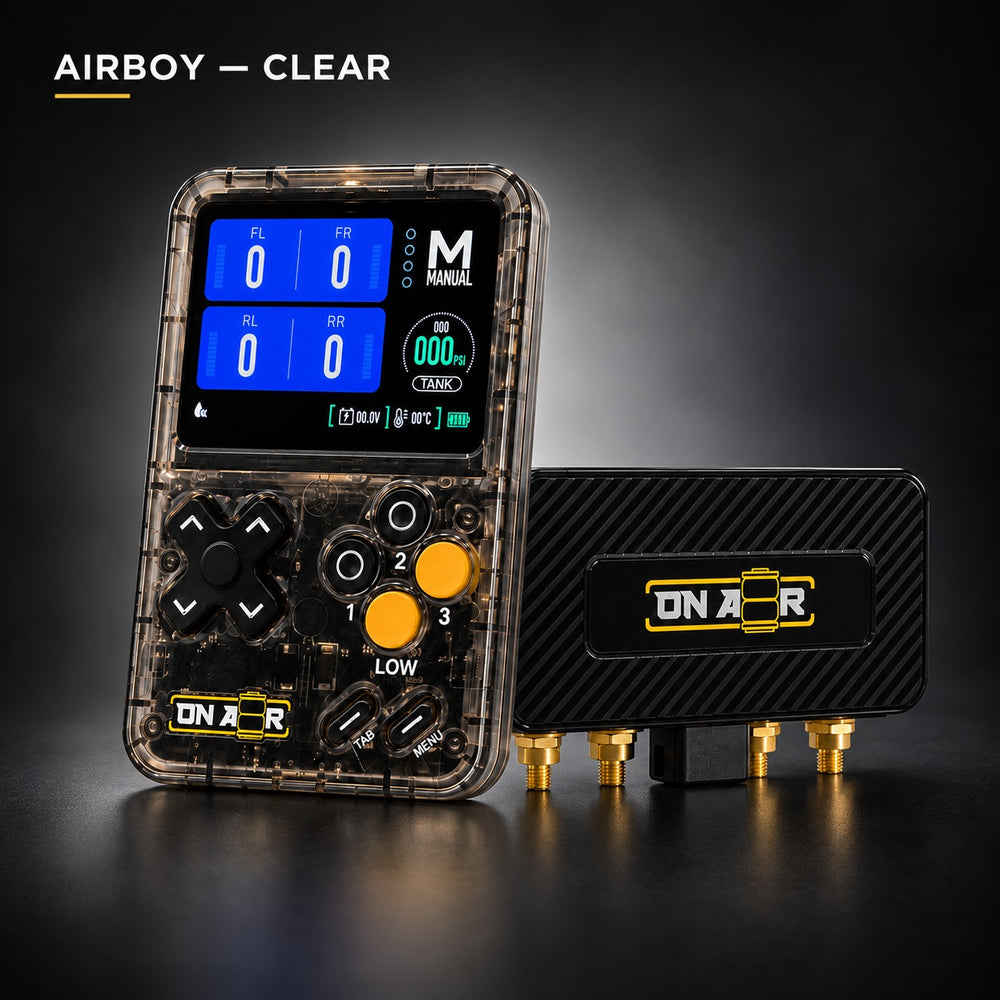

The metal-case controllers bring weight and tactile buttons to your cabin. The Clear + Wireless option adds a transparent handheld with a built-in battery for wireless operation after you switch the car off.
The Clear + Wireless controller can be unplugged from its USB-C lead and used for up to 30 minutes after ignition-off. This battery-powered feature belongs to that option; the metal finishes use the wired USB-C connection.
Presets and everyday features
- Our largest manifold: A larger block than V4 Elite, with a transparent housing that reveals the pistons and valves inside. Allow for its footprint when planning the install.
- Settings that suit you: Adjust brightness and the sleep timer. Configure Rise on Start and Flame Out, the setting for air-out when the ignition turns off.
- More tuning options: Load-balancing and precision settings are available in the AirBoy menus. ONAIR can help configure them around your vehicle and setup.
- Its own Bluetooth app: AirBoy uses its own app for wireless control with the ignition on. The Clear controller’s battery-powered wireless mode is a separate feature.
Compressor control and wiring
AirBoy has an adjustable built-in pressure switch. Choose the low tank-pressure setting that starts filling and the high setting that stops the compressor.
The supplied harness keeps the management connections organised. Follow its labelled power, ground, ignition and compressor connections and the installation diagram for your air supply.
USB-C on every ONAIR handheld
2V, 4V, V4 Elite and AirBoy all use a USB-C remote connector and ship with the current software for their system. Use the supplied controller cable for the management connection.
What is included
- AirBoy four-corner manifold
- your selected handheld controller
- full wiring harness
- 50 ft of 1/4-inch airline and matching 1/4-inch fittings
Tank, compressor and vehicle-specific suspension are separate. Only Clear + Wireless includes the battery-powered wireless handheld.
Drain mode and future height hardware
AirBoy offers normally-open/normally-closed drain settings for compatible ONAIR compressor/drain hardware. This is a hardware-specific function, not a promise that any standard compressor or manual water trap can drain automatically. Confirm the matching air-supply setup with ONAIR.
No. Height brackets and related hardware are planned as future add-ons. The package currently listed uses pressure information; do not treat future height hardware as an included feature.
About presets: Presets recall pressure targets. Air pressure is not a measured height: passengers, cargo and setup can change the height at the same PSI.
Air Boy Management System
Clear + Wireless Remote
$1,955.00
$2,205.00
AIR MANAGEMENT SAVINGS$250 CAD OFF EVERY MANAGEMENT SYSTEM
Your $250 CAD savings are already included in the price shown. Choose your control. No code needed.
Build with 5+ eligible items and save a further 10% automatically in your cart through October 31, 2026. Other promotional discounts do not combine.
AIRBOY • NEXT-GENERATION AIR MANAGEMENT
A controller you’ll
want to hold.
Tactile buttons, a distinctive handheld and ONAIR’s largest manifold block make AirBoy a different air ride experience. Three presets plus a dedicated LOW button keep the everyday controls easy to use.
Choose it forFor a tactile handheld, detailed settings and the optional Clear + Wireless controller.
3 + LOWPresets + dedicated air-out
4Live corner + tank display
ClearWireless controller option
USB-CHandheld connection
How it controls
Tap to adjust. Hold to save.
Adjust corners individually, in pairs or together. To save a new pressure preset, set the vehicle to your chosen position, then press and hold that preset button.
The LOW button is separate from the three saved presets. You keep three useful profiles and a dedicated air-out command.
Presets recall pressure targets. Air pressure is not a measured height: passengers, cargo and setup can change the height at the same PSI.
Try the control layout
Four individual PSI readings
Tank pressure
Both front corners are selected.
Select an area to see which corners move together. This is an illustration, not a live controller.
Built-in battery. Up to 30 minutes of unplugged control after ignition-off.
Choose the finish.
Know the difference.
The metal-case controllers bring weight and tactile buttons to your cabin. The Clear + Wireless option adds a transparent handheld with a built-in battery for wireless operation after you switch the car off.
The Clear + Wireless controller can be unplugged from its USB-C lead and used for up to 30 minutes after ignition-off. This battery-powered feature belongs to that option; the metal finishes use the wired USB-C connection.
1Preset 1Press and hold to save
2Preset 2Press and hold to save
3Preset 3Press and hold to save
LOWDedicated air-out
Our largest manifold
A larger block than V4 Elite, with a transparent housing that reveals the pistons and valves inside. Allow for its footprint when planning the install.
Settings that suit you
Adjust brightness and the sleep timer. Configure Rise on Start and Flame Out, the setting for air-out when the ignition turns off.
More tuning options
Load-balancing and precision settings are available in the AirBoy menus. ONAIR can help configure them around your vehicle and setup.
Its own Bluetooth app
AirBoy uses its own app for wireless control with the ignition on. The Clear controller’s battery-powered wireless mode is a separate feature.
Pressure & wiring
Your cut-on.
Your cut-off.
AirBoy has an adjustable built-in pressure switch. Choose the low tank-pressure setting that starts filling and the high setting that stops the compressor.
Built-in • adjustableBelow cut-onCompressor fills
At cut-offCompressor stops
Compressor control follows tank pressure, not the pressure in your airbags.
A labelled plug-and-play harness.
The supplied harness keeps the management connections organised. Follow its labelled power, ground, ignition and compressor connections and the installation diagram for your air supply.
See ONAIR’s compressor wiring guideAirBoyA labelled plug-and-play harness.
Overview only. Use the included diagram for relay control, ground, fuse ratings and wire sizes. Size each compressor circuit for its load.
CURRENT-GENERATION CONTROL
USB-C on every ONAIR handheld.
2V, 4V, V4 Elite and AirBoy all use a USB-C remote connector and ship with the current software for their system. Use the supplied controller cable for the management connection.
Management package
What you’re getting.
AirBoy four-corner manifold; your selected handheld controller; full wiring harness; 50 ft of 1/4-inch airline and matching 1/4-inch fittings.
Tank, compressor and vehicle-specific suspension are separate. Only Clear + Wireless includes the battery-powered wireless handheld.
Complete the air supply and suspension around your selected system.Compare systems
Which ONAIR system fits you?
Choose by how you want to control the car, wire the compressor and use the remote.
Scroll across to compare all four systems.
| Feature | 2V | 4V | V4 Elite | AirBoyThis system |
|---|---|---|---|---|
| Adjustment | Front / rear pairs + whole car | Individual corners + pairs + whole car | Individual corners + pairs + whole car | Individual corners + pairs + whole car |
| Saved presets | 3 | 5 | 5 | 3 + separate LOW button |
| Pressure display | Front axle + rear axle + tank | All 4 corners + tank | All 4 corners + tank | All 4 corners + tank |
| Compressor switch | Built-in, adjustable | External, factory-set | Built-in, adjustable | Built-in, adjustable |
| Wiring / relay | Separate relay included | Separate relay + tank switch | Relay prewired into harness | Labelled plug-and-play harness |
| App / wireless control | A–D key fob; no app required | iPhone + Apple Watch; ignition on | Bluetooth app; ignition on | Dedicated Bluetooth app; ignition on |
| Wireless with ignition off | Key fob, while system remains powered | Bluetooth requires ignition on | Bluetooth requires ignition on | Clear + Wireless only, up to 30 min |
| Handheld connection | USB-C | USB-C | USB-C | USB-C |
| Choose it for | Simple daily control + parked-car fob | Proven four-corner control + iPhone | Preassembled wiring + illuminated hardware | Tactile handheld + detailed settings |
| Compare systems | View system | View system | View system | View system |
Make it a complete setup.
Choose your management, then match the suspension, compressor, tank and supporting parts to your build.
